Lasermate Structured Light Laser Modules provide stable, repeatable structured-light projection for active-stereo 3D sensing, 3D depth sensing, machine vision, industrial inspection, robotics, and optical sensing. The portfolio covers visible and infrared wavelengths and integrates single-mode laser diodes, precision Diffractive Optical Elements (DOE), Automatic Power Control (APC), and adjustable-focus optics for R&D, evaluation, system integration, and volume production.

Three product families are available to meet different development and integration requirements:

Product Family GMS-Series GMP-Series LTG-/PLG-Series
DOE Precision DOE in exchangeable holder Precision DOE in exchangeable holder Precision DOE
DOE Patterns* Random dots Random dots, regular dots, single line, parallel lines, etc. Random dots, regular dots, single line, parallel lines, etc.
Optics Plastic aspherical lens; adjustable focus Plastic aspherical lens; adjustable focus Glass aspherical lens; adjustable focus
Laser Single mode Single mode Single mode
Laser Diode Driver Current-limited APC circuit IEC 60825-1 compliant, fail-safe APC circuit IEC 60825-1 compliant, fail-safe APC circuit
Operation TTL, DC–10 kHz CW or TTL, DC–10 kHz CW or TTL, DC–10 kHz
Working Distance Up to 250 cm** Up to 120 cm** Up to 120 cm**

*DOE Patterns: please visit our website Diffractive Optical Elements (DOEs) – Beam Shaping & Pattern Projection | Lasermate for the datasheet.

**Working distance depends on wavelength, dot count, output power, and application.

GMS-Series is optimized for DOE development, pattern evaluation, pre-production testing, and volume production, with TTL operation and higher peak optical output power options for pattern evaluation.
GMP-Series provides a flexible development and evaluation platform with interchangeable DOE options and CW or TTL operation from R&D and Evaluation to Volume Production.
LTG-/PLG-Series is designed for integrated OEM applications and volume production, combining precision DOE, glass optics, and fail-safe APC.

Filters Sort results
Reset Apply
Part Number
Wavelength
DOE Pattern
Total Dots
FOV
Focus
Operation Mode
Laser Class

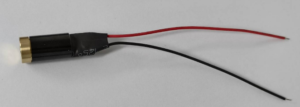

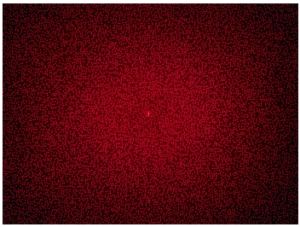

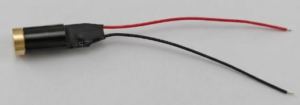

gmp66laryk8GMP66LARYK8
660nm
Random Dots
10,000
/
30,000
80°x64.4°
Adjustable
CW
Class I
ltg66lar y k8LTG66LARYK8
660nm
Random Dots
10,000
/
30,000
80°x64.4°
Adjustable
CW
Class I
gms66xaryk8tGMS66XARYK8T
660nm
Random Dots
10,000
/
30,000
80°x64.4°
Adjustable
Modulated (PWM/TTL)
Class I
LTG66LAR-Y-K8TLTG66LARYK8T
660nm
Random Dots
10,000
/
30,000
80°x64.4°
Adjustable
Modulated (PWM/TTL)
Class I
gmp66laryk8tGMP66LARYK8T
660nm
Random Dots
10,000
/
30,000
80°x64.4°
Adjustable
Modulated (PWM/TTL)
Class I
gms83xar30k7tGMS83XAR30K7T
830nm
Random Dots
30,000
70°x55.4°
Adjustable
Modulated (PWM/TTL)
Class I
gmp83xar15k6tGMS83XAR15K6T
830nm
Random Dots
15,000
60°x46.8°
Adjustable
Modulated (PWM/TTL)
Class I

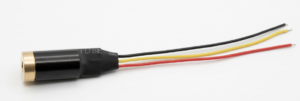

gmp83lar15k6tGMP83LAR15K6T
830nm
Random Dots
15,000
60°x46.8°
Adjustable
Modulated (PWM/TTL)
Class I
gmp83lar30k7tGMP83LAR30K7T
830nm
Random Dots
30,000
70°x55.4°
Adjustable
Modulated (PWM/TTL)
Class I

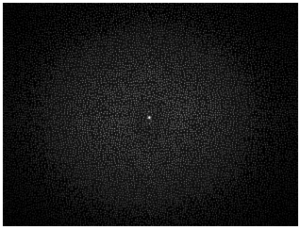

gms85xaryk8tGMS85XARYK8T
850nm
Random Dots
10,000
/
30,000
80°x64.4°
Adjustable
Modulated (PWM/TTL)
Class I
ltg85lar y k8LTG85LARYK8
850nm
Random Dots
10,000
/
30,000
80°x64.4°
Adjustable
CW
Class I
ltg85lar y k8tLTG85LARYK8T
850nm
Random Dots
10,000
/
30,000
80°x64.4°
Adjustable
Modulated (PWM/TTL)
Class I
plg85laryk8PLG85LARYK8
850nm
Random Dots
10,000
/
30,000
80°x64.4°
Adjustable
CW
Class I
plg85laryk8tPLG85LARYK8T
850nm
Random Dots
10,000
/
30,000
80°x64.4°
Adjustable
Modulated (PWM/TTL)
Class I
gmp85laryk8GMP85LARYK8
850nm
Random Dots
10,000
/
30,000
80°x64.4°
Adjustable
CW
Class I
