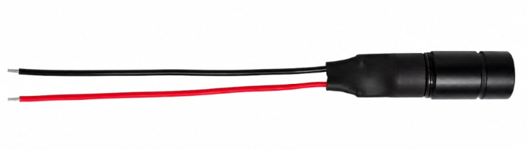

The LTG85LARYK8 is a Class 1 850 nm continuous-wave structured-light laser module featuring a precision random-dot DOE, aspherical lens, adjustable-focus optics, single-mode laser diode, and fail-safe APC. Available with 10,000 or 30,000 random dots across an 80° × 64.4° FOV, it provides stable, repeatable structured illumination for indoor active-stereo 3D sensing, 3D depth sensing, and other optical sensing applications.
LTG85LARYK8
Description
The LTG85LARYK8 is a Class 1, 850 nm continuous-wave (CW) structured-light laser module integrating a single-mode 850 nm laser diode, a precision Diffractive Optical Element (DOE), an aspherical lens, an adjustable-focus optical design, and a fail-safe Automatic Power Control (APC) circuit designed to support IEC 60825-1 Class 1 operation driven by a standard 3–5 VDC supply.
The laser module projects either 10,000 or 30,000 random dots over an 80° × 64.4° FOV, with a DOE contrast of ≥10 and ≥3, respectively. The adjustable-focus optical design enables optimization of the projected dot pattern for the desired working distance, while CW operation and APC regulation provide stable, consistent illumination and repeatable optical output. The LTG85LARYK8 is ideally suited for indoor active-stereo 3D sensing, 3D depth sensing, and other optical sensing applications.
Features
- Adjustable focus for optimizing working distance
- CW operation with 3–5 VDC supply
- Operating current (≤100mA) at 25 oC
- IEC 60825-1 compliant, fail-safe APC circuit
- Class 1 laser module with a fail-safe APC laser diode driver
Applications
- Active stereo 3D sensing
- 3D depth sensing
- Machine vision
- Robotics and automation
- Industrial inspection & measurement
Additional information
| DOE Pattern | Random Dots |
|---|---|
| Total Dots | 10,000, 30,000 |
| Wavelength | 850nm |
| Field of View (FOV) | 80°x64.4° |
| Focus | Adjustable |
| Operation Mode | CW |
| Laser Class | Class I |
Documentation
Data Sheet
[PDF] LTG85LARYK8 – Class 1 850nm Random-Dot DOE Structured Light Laser Module Datasheet
