The LTG85LARYK8T is a Class 1 850 nm continuous-wave structured-light laser module featuring a precision random-dot DOE, glass aspherical lens, adjustable-focus optics, single-mode laser diode, and fail-safe APC. Available with 10,000 or 30,000 random dots across an 80° × 64.4° FOV, it provides stable, repeatable structured illumination with DC–10 kHz TTL modulation for indoor active-stereo 3D sensing, 3D depth sensing, and other optical sensing applications.

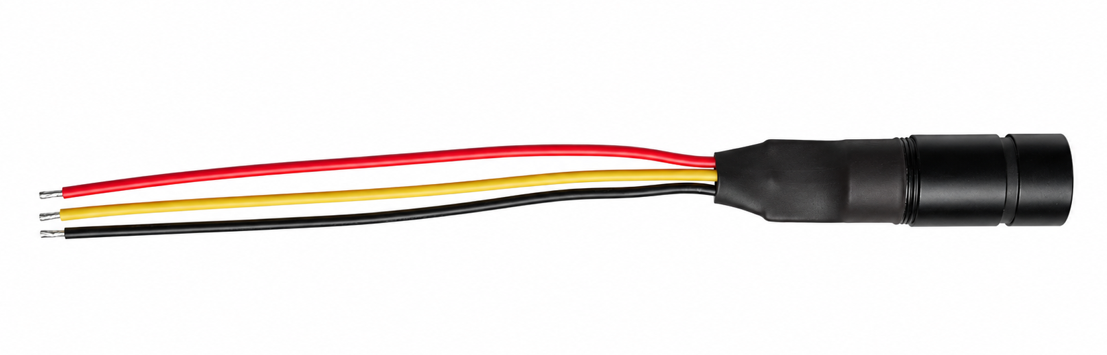

LTG85LARYK8T
Description
The LTG85LARYK8T is a Class 1, 850 nm continuous-wave (CW) structured-light laser module integrating a precision Diffractive Optical Element (DOE), a glass aspherical lens, an adjustable-focus optical design, a single-mode 850 nm laser diode, and a fail-safe Automatic Power Control (APC) circuit designed to support IEC 60825-1 Class 1 operation, with TTL modulation from DC to 10 kHz.
The laser module projects either 10,000 or 30,000 random dots over an 80° × 64.4° (H x V) field of view (FOV), with a DOE contrast ≧10 or ≧3, respectively. The adjustable-focus optical design enables optimization of the projected dot pattern for the desired working distance. The APC circuit maintains controlled optical output for stable and repeatable performance in indoor active-stereo 3D sensing, 3D depth sensing, and other optical sensing applications.
Features
- Adjustable focus for optimizing working distance
- TTL modulation from DC to 10 kHz
- Operating current (≤100mA) at 100% duty cycle
- IEC 60825-1 compliant, fail-safe APC circuit
- Class 1 laser module with a fail-safe APC laser diode driver
Applications
- Active stereo 3D sensing
- 3D depth sensing
- Machine vision
- Robotics and automation
- Industrial inspection & measurement
Additional information
| DOE Pattern | Random Dots |
|---|---|
| Total Dots | 10,000, 30,000 |
| Wavelength | 850nm |
| Field of View (FOV) | 80°x64.4° |
| Focus | Adjustable |
| Operation Mode | Modulated (PWM/TTL) |
| Laser Class | Class I |
Documentation
Data Sheet
[PDF] LTG85LARYK8T – Class 1 850nm Random-Dot DOE Structured Light Laser Module Datasheet
