GMS66XARYK8T

Description

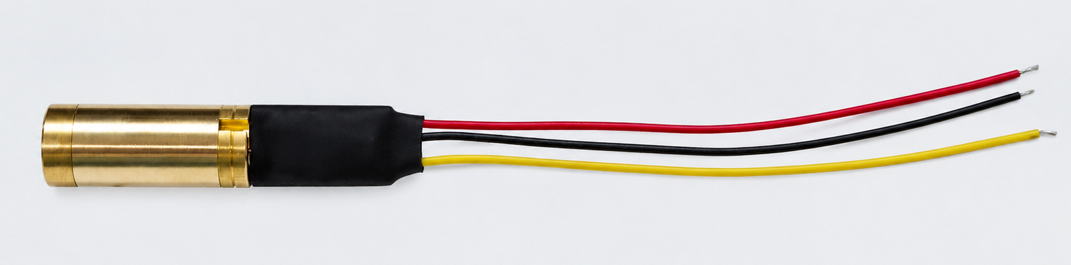

The GMS66XARYK8T is a Class 1, 660 nm structured-light laser module designed as a flexible R&D and evaluation platform for DOE projector development, pattern evaluation, and pre-production testing. It integrates a precision Diffractive Optical Element (DOE) within an exchangeable holder, a plastic aspherical lens, an adjustable focus optical design, a single-mode 660 nm laser diode, and a current-limited Automatic Power Control (APC) designed to support IEC 60825-1 Class 1 operation, with TTL modulation from DC to 10 kHz.

The laser module projects either 10,000 or 30,000 random dots across a wide 80° × 64.4° (H × V) field of view (FOV), delivering a DOE contrast of ≥8 and ≥2, respectively. Its exchangeable DOE holder facilitates the rapid testing of alternative patterns, while the adjustable focus allows for precise optimization at specific working distances. Furthermore, TTL modulation enables higher peak optical output powers while maintaining compliance with Class 1 Accessible Emission Limits (AEL). Backed by stable, APC-controlled optical output, the GMS66XARYK8T is an ideal evaluation tool for machine vision, industrial inspection, and other optical sensing applications.

Features

• Exchangeable DOE holder
• Adjustable focus for optimizing working distance
• TTL modulation from DC to 10 kHz
• Current-limited APC circuit for Class 1 laser safety control
• IEC 60825-1 compliant design

Applications

• Active stereo 3D sensing
• 3D depth sensing
• Machine vision
• Robotics and automation
• Industrial inspection & measurement
