FPA30M321119T
Description

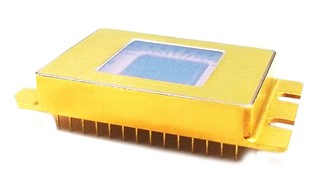

The FPA30M321119T is a 320×256 InGaAs focal plane array engineered for shortwave-infrared (SWIR) imaging across the 1.1–1.9µm spectral range. Packaged in a 28-pin metal DIP package with an embedded 2-stage thermoelectric cooler (TEC) and built-in temperature sensor, it ensures stable operation and superior image quality under varying environmental conditions.
With >99% pixel operability and >70% quantum efficiency, the FPA30M321119T provides high sensitivity and reliability. Its support for snapshot ITR/IWR and IMRO readout modes, multiple output channels (1, 2, or 4) up to 10MHz pixel rate, and windowing capability makes it well-suited for advanced imaging and sensing applications.
Features
- 320×256 array format
- 1.1–1.9µm spectral range
- 28-pin metal DIP package
- Embedded 2-stage thermoelectric cooler (TEC)
- Built-in temperature sensor
- Minimum pixel operability >99%
- Quantum efficiency >70%
- Snapshot ITR/IWR and IMRO readout modes
- 1, 2, or 4 outputs with up to 10MHz pixel rate
- Windowing capability
Applications
- Shortwave-infrared (SWIR) imaging
- Hyper/multi-spectral imaging
- Semiconductor inspection and process monitoring
- Medical science and biology
- Fiber optic assembly and testing
- Imaging through fog/smoke
- Astronomy and scientific research
- Ice, slush, and moisture mapping
- Laser beam profiling
- Sorting and recycling
Additional information
| Status | Active |
|---|---|
| Number of Effective Pixels | 320×256 |
| Pixel Size | 30umx30um |
| Pixel Pitch | 30um |
| Image Size | 9.6mmx7.68mm |
| Spectral Response Range | 1100-1900nm |
| Frame Rate | 346fps |
