The FPA25M64917C is a cooled 640×512 InGaAs focal plane array for 0.9–1.7µm near-infrared imaging. Featuring high sensitivity, embedded 1-stage TEC, and >99.5% pixel operability, it supports applications in spectroscopy, inspection, surveillance, and scientific imaging.
FPA25M64917C
Description

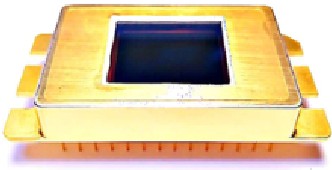

The FPA25M64917C is a high-performance near-infrared focal plane array (FPA) designed for imaging in the 0.9–1.7µm spectral range. It integrates a 640×512 InGaAs detector array with a P-on-N readout IC, housed in a 28-pin metal DIP package with an embedded thermoelectric cooler (TEC) for enhanced thermal stability.
Engineered for precision and reliability, the FPA25M64917C delivers a typical pixel operability of >99.5% and a quantum efficiency >70%, ensuring excellent sensitivity and image quality. Its cooled design minimizes dark current and noise, making it ideal for demanding scientific, industrial, and defense applications.
Features
- 640×512 InGaAs detector array
- 0.9–1.7µm spectral range
- 28-pin metal DIP package
- Embedded thermoelectric cooler (TEC)
- P-on-N readout IC hybrid structure
- Typical pixel operability >99.5%
- Quantum efficiency >70%
Applications
- Near-infrared imaging
- Imaging spectroscopy
- Covert surveillance
- Semiconductor inspection
- Medical science and biology
- Fiber optic telecommunication
- Astronomy and scientific research
- Ice, slush, and moisture mapping
- Industrial thermal imaging
Additional information
| Status | Active |
|---|---|
| Number of Effective Pixels | 640×512 |
| Pixel Size | 25umx25um |
| Pixel Pitch | 25um |
| Image Size | 16mmx12.8mm |
| Spectral Response Range | 900-1700nm |
| Frame Rate | 107fps |
Documentation
Data Sheet
[PDF] FPA25M64917C – 0.9–1.7µm 640×512 InGaAs Near-Infrared Focal Plane Array with 1-Stage TEC Product Datasheet
