FPA15C64917

Description

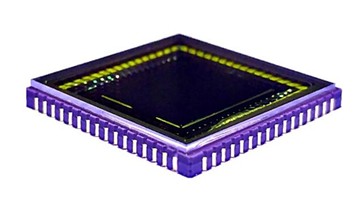

The Lasermate FPA15C64917 is a lightweight, high-resolution 640×512 InGaAs focal plane array (FPA) designed for near-infrared imaging across the 0.9–1.7µm wavelength range. Packaged in a 64CLCC package, the sensor provides robust performance with room-temperature operation, eliminating the need for active cooling in many applications.

Engineered with >70% quantum efficiency and >99.9% pixel operability, the FPA15C64917 ensures exceptional image quality and reliability. Its architecture supports snapshot ITR/IWR and IMRO readout modes, 2, 4, or 8 outputs at up to 18MHz pixel rate, and windowing capability for flexible integration into advanced imaging systems. A built-in temperature sensor adds precise monitoring for stable operation.

This focal plane array is well-suited for covert surveillance, semiconductor and solar panel inspection, fiberoptic testing, industrial monitoring, and scientific exploration, particularly where sensitivity in the NIR spectrum is essential.

Features

• 640×512 array format
• 0.9µm–1.7µm spectral range
• Lightweight 64CLCC package
• Typical pixel operability >99.9%
• Quantum efficiency >70%
• Room temperature operation
• Built-in temperature sensor
• Snapshot ITR/IWR and IMRO readout modes
• 2, 4, or 8 outputs with up to 18MHz pixel rate
• Windowing capability

Applications

• Near-infrared imaging
• Covert surveillance
• Semiconductor and solar panel inspection
• Medical science and biology
• Fiberoptic assembly and testing
• Imaging through fog/smoke
• Ice, slush, and moisture mapping
• Industrial thermal imaging
• Astronomy and scientific research
