The VCx-660P2A is a cutting-edge 660nm pulsed VCSEL diode with a 2mW output, available in a range of package options including 2016, 3535, TO56, and TO46. This diode is designed for optimal performance in optical sensing, imaging, and communication applications, ensuring flexibility and reliability.
VCx-660P2A
Description
The Lasermate VCx-660P2A is a 660nm wavelength, 2mW output power, pulsed operating mode, Vertical Cavity Surface Emitting Laser (VCSEL) diode. Available in different package types, the VCSEL features low wavelength drift, narrow linewidth, and easy collimation. Ideal for sensing i.e. proximity, consumer electronics, pulse oximetry, and medical applications.
VCx-660P2A: 660nm 2mW VCSEL Diodes Data Sheet
Features
- 660nm Red VCSEL Diode
- Output power: 2mW
- Low wavelength drift
- Oxide isolation technology
- Narrow linewidth
- Easy to collimate
Applications
- Sensing i.e. Proximity
- Consumer electronics
- Pulse oximetry
- Medical application
Additional information
| Status | Active |
|---|---|
| Peak Wavelength | 660nm |
| Optical Power | 2mW |
| Iop | 10mA |
| Beam Angle | 20° |
| Emission Mode | Multimode |

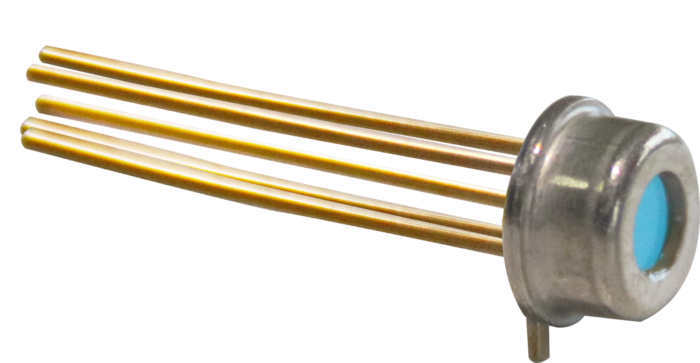

| PackagingType | 2016, 3535, TO-46, TO56 |
