The MDOE830A200R303 is a high-performance Structured Light Laser Module operating at 830nm. It features 30,000 random dots for precise 3D scanning and depth sensing, making it ideal for applications requiring accuracy and reliability in measurements.
MDOE830A200R303
Description

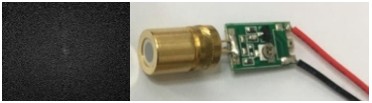

The Lasermate MDOE830A200R303 laser module is an 830nm laser module integrated with 30,000-random dots pattern diffractive optical element (DOE). Designed for R&D purposes, the laser module comes with an adjustable focusing lens and with adjustable current to set the output power within a certain range.
MDOE830A200R303 – Structured Light Laser Module, 830nm, 30,000-Random Dots
Features
- 830nm diffractive optical element (DOE) laser module
- 30,000-random dot pattern
- Field of View (FOV): 70° x 55.4° (H x V)
- Low distortion and high uniform pattern
- Flexible package for R&D evaluation
- Distance tunable projection
- PWM drivable
- IEC 60825 eye safety standards
Applications
- Structured light for 3D sensing
- Machine vision
Additional information
| Wavelength-typ | 830nm |
|---|---|
| Pattern | Random Dots |
| Total Dots | 30,000 |
| Field of View (FOV) | 70°x55.4° |
| Operating Current | 220mA |
| Operating Voltage | 2.1V |
| Mechanical Dimensions | Dia. 8mm x L. 15mm |
Documentation
Data Sheet
[PDF] MDOE830A200R303 – Structured Light Laser Module, 830nm, 30,000-Random Dots Data Sheet
