The MDOE830A200R153 is a structured light laser module with an 830nm wavelength, generating 15,000 random dots for enhanced accuracy in 3D scanning, machine vision, and industrial applications. Designed by Lasermate, it ensures high precision and reliability in demanding environments.
MDOE830A200R153
Description

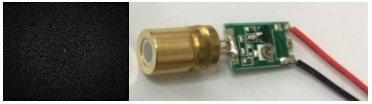

The Lasermate MDOE830A200R153 laser module is an 830nm laser module integrated with 15,000-random dots pattern diffractive optical element (DOE). Designed for R&D purposes, the laser module comes with an adjustable focusing lens and with adjustable current to set the output power within a certain range.
MDOE830A200R153 – Structured Light Laser Module, 830nm, 15,000-Random Dots
Features
- 830nm diffractive optical element (DOE) laser module
- 15,000-random dot pattern
- Field of View (FOV): 60° x 46.8° (H x V)
- Low distortion and high uniform pattern
- Flexible package for R&D evaluation
- Distance tunable projection
- PWM drivable
- IEC 60825 eye safety standards
Applications
- Structured light for 3D sensing
- Machine vision
Additional information
| Wavelength-typ | 830nm |
|---|---|
| Pattern | Random Dots |
| Total Dots | 15,000 |
| Field of View (FOV) | 60°x46.8° |
| Operating Current | 220mA |
| Operating Voltage | 2.1V |
| Mechanical Dimensions | Dia. 8mm x L. 15mm |
Documentation
Data Sheet
[PDF] MDOE830A200R153 – Structured Light Laser Module, 830nm, 15,000-Random Dots Data Sheet
