- Red 650nm laser module
- Integrated diffractive optical element (DOE)
- 30,000-random dots pattern
MDOE650A10R303
Description

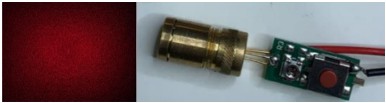

The Lasermate MDOE650A10R303 laser module is an 650nm laser module integrated with 30,000-random dots pattern diffractive optical element (DOE). Designed for R&D purposes, the laser module comes with an adjustable focusing lens and with adjustable current to set the output power within a certain range.
MDOE650A10R303 – Structured Light Dot Laser Module, 650nm, 30,000-Random Dots Data Sheet
Features
- 650nm diffractive optical element (DOE) laser module
- 30,000-random dot pattern
- Field of View (FOV): 80° x 64° (H x V)
- Low distortion high uniform pattern
- Flexible package for R&D evaluation
- Distance tunable projection
- PWM drivable
- IEC 60825 eye safety standards
Applications
- Structured light for 3D sensing
- Machine vision
Additional information
| Wavelength-typ | 650nm |
|---|---|
| Pattern | Random Dots |
| Total Dots | 30,000 |
| Field of View (FOV) | 80°x64° |
| Operating Current | 24mA |
| Operating Voltage | 3VDC |
| Mechanical Dimensions | Dia. 8mm x L. 15mm |
Documentation
Data Sheet
[PDF] MDOE650A10R303 – Structured Light Dot Laser Module, 650nm, 30,000-Random Dots Data Sheet
