GMP94H-XX-R-Y-K7

Description

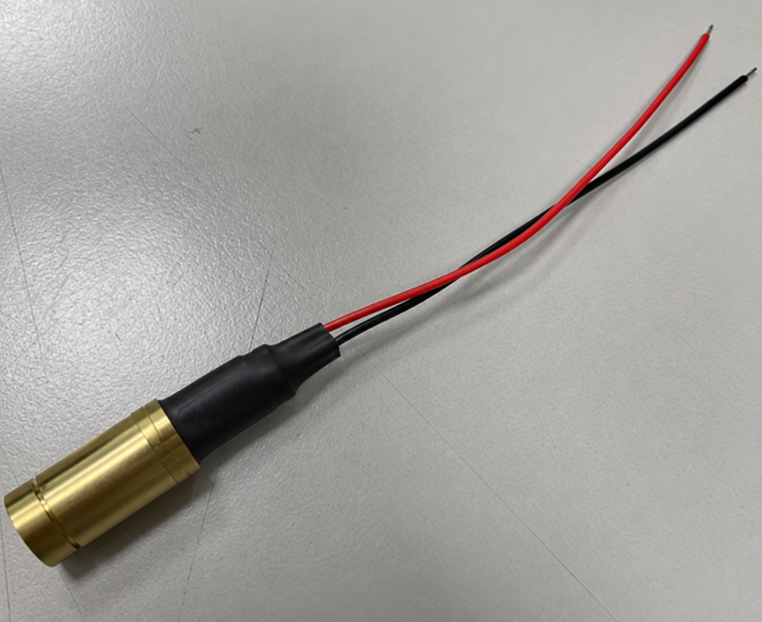

The GMP94H-XX-R-Y-K7 is a Class 1, 940 nm continuous wave (CW) structured-light laser module integrating a single- mode 940 nm laser diode, a precision Diffractive Optical Element (DOE), a customer-specified fixed nominal focus distance, and an Automatic Power Control (APC) circuit driven by a standard 3–5 VDC supply.

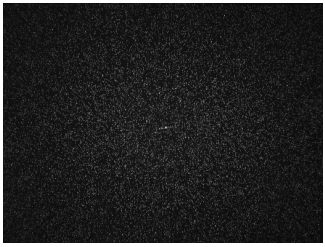

The laser module projects either 15,000 or 30,000 random dots across a 70° × 55.5° FOV with a DOE contrast ≥10 or ≥3, respectively. The customer-specified fixed nominal focus distance up to 150 cm offers optimization of the projected dot pattern for the desired working distance.

CW operation provides continuous, stable illumination during camera exposure for efficient photon collection and consistent dot intensity. The APC circuit maintains controlled optical output for stable and repeatable performance in indoor active-stereo 3D sensing, machine vision, and other optical sensing applications.

GMP94H-XX-R-Y-K7 – Class 1 940nm Random-Dot DOE Structured Light Laser Module

Features

• Class 1 laser with 940nm single-mode laser diode
• CW operation from a 3–5 VDC supply
• Integrated Automatic Power Control (APC) circuit
• Customer-specified nominal focus distance, up to 150 cm
• IEC 60825 eye-safety standards

Indoor Applications

• Active stereo 3D sensing
• 3D depth sensing
• Machine vision
• Robotics and automation
• Industrial inspection & measurement
