GMP85L-XX-R-Y-K8

Description

The GMP85L-XX-R-Y-K8 is a Class 1, 850 nm continuous-wave (CW) structured-light laser module integrating a single-mode 850 nm laser diode, a precision Diffractive Optical Element (DOE), a customer-specified fixed nominal focus distance, and an IEC 60825-compliant Automatic Power Control (APC) circuit driven by a standard 3–5 VDC supply.

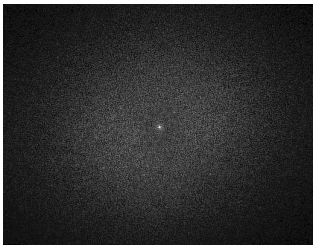

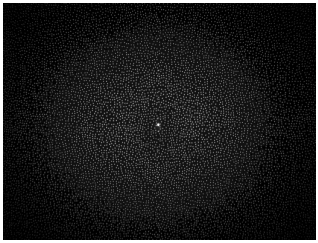

The laser module projects either 10,000 or 30,000 random dots over an 80° × 64.4° FOV, with a DOE contrast ≥10 and ≥3, respectively. The customer-specified fixed nominal focus distance up to 150 cm offers optimization of the projected dot pattern for the desired working distance.

CW operation provides continuous, stable illumination during camera exposure for efficient photon collection and consistent dot intensity. The APC circuit maintains controlled optical output for stable and repeatable performance in indoor active-stereo 3D sensing, machine vision, and other optical sensing applications.

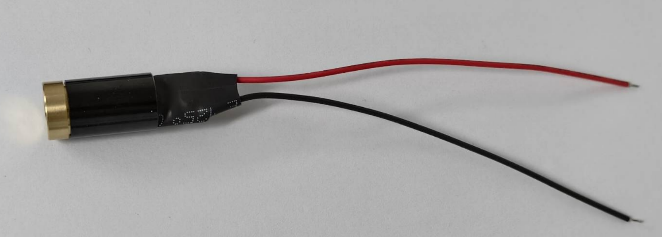

GMP85L-XX-R-Y-K8 – Class 1 850nm Random-Dot DOE Structured Light Laser Module

Features

• Class 1 laser module with IEC 60825-compliant APC circuit
• IEC 60825 eye-safety compliant design
• CW operation with 3–5 VDC supply
• 850 nm single-mode laser diode
• Customer-specified nominal focus distance, up to 150 cm

Indoor Applications

• Active stereo 3D sensing
• 3D depth sensing
• Machine vision
• Robotics and automation
• Industrial inspection & measurement
