Compact Class 1 850nm infrared structured light laser modules with 10K or 30K random-dot DOE patterns for 3D depth sensing, robotics, machine vision, and industrial inspection.

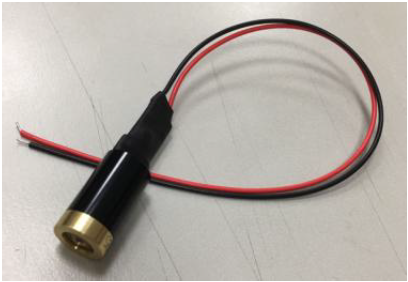

GMP850XF5RXKX
Description
The GMP850XF5RXKX is a Class 1 850nm DOE structured light laser module designed to project high-density infrared random-dot patterns for advanced 3D depth sensing, machine vision, and optical sensing applications. Available with 10,000 or 30,000-random dot pattern configurations, the module combines an 850nm infrared laser source with precision diffractive optical element (DOE) optics to generate a stable and uniform structured light pattern.
The infrared structured light projection provides a dense pattern of reference points that can be used by vision systems to obtain depth and surface information for object detection, dimensional measurement, and 3D reconstruction. Its compact form factor and Class 1 laser safety classification make the module suitable for integration into space-constrained sensing platforms and OEM equipment.
The GMP850XF5RXKX is well suited for 3D depth sensing, machine vision, robotics, industrial inspection, object recognition, dimensional measurement, optical sensing, and OEM system integration, providing a compact infrared structured light source for next-generation sensing systems.
Additional information
| Wavelength | 850nm |
|---|---|
| Laser Class | 1 |
| DOE Pattern Category | Random Dots Pattern |
| Total Dots | 10,000, 30,000 |
| Field of View (FOV) | 80°x64.4° |
| Operating Voltage | 3-5VDC |
| Mechanical Dimensions | Dia. 12mm x L. 22mm |
Documentation
Data Sheet
[PDF] GMP850XF5RXKX – Class 1 850nm DOE Structured Light Laser Modules Data Sheet
