Compact Class 1 red structured light laser modules with 10K or 30K random-dot DOE patterns for 3D sensing, depth mapping, machine vision, and OEM integration.
GMP660LF5RXK8
Description

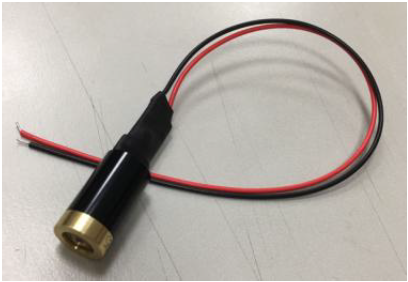

The GMP660LF5RXK8 is a Class 1 660nm DOE structured light laser module designed to generate high-density random-dot patterns for advanced 3D sensing, depth measurement, and machine vision applications. With 10,000 or 30,000-random dot pattern configurations, the module uses a red laser diode and precision diffractive optical element (DOE) to project a stable, uniform structured light pattern.
The combination of a high-density random-dot pattern, compact module design, and Class 1 laser safety classification makes the GMP660LF5RXK8 well suited for integration into space-constrained sensing platforms. The structured light projection provides detailed surface information for depth reconstruction, object detection, dimensional measurement, and machine vision systems.
The GMP660LF5RXK8 is ideal for 3D sensing, depth mapping, machine vision, robotics, object recognition, dimensional measurement, and OEM system integration, providing a compact and practical structured light source for consumer and industrial sensing applications.
Additional information
| Wavelength | 650nm |
|---|---|
| Laser Class | 1 |
| DOE Pattern Category | Random Dots Pattern |
| Total Dots | 10,000, 30,000 |
| Field of View (FOV) | 80° x 64.4° |
| Operating Voltage | 3-5VDC |
| Mechanical Dimensions | Dia. 12mm x L. 22mm |
Documentation
Data Sheet
[PDF] GMP660LF5RXK8 – Class 1 660nm DOE Structured Light Laser Modules Data Sheet
