CS13D-12A-3L-Px-Cx
Form Factor: 1×9 Data Rate: 622Mbps
Distance: 50km Wavelength: 1310nm
Protocol: L4.1
622Mbps L4.1 1310nm Single Mode 50km 1×9 Transceiver
Description

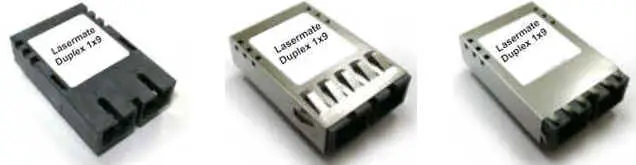

The CS13D-12A-3L-Px-Cx duplex 1×9 optical transceivers are high performance, cost effective optical transceiver modules for serial optical data communications application specified for a data rate of 622 Mb/s. The 1×9 transceiver module provides 50km transmission distance over single mode fiber at nominal wavelength of 1310nm. The optical transceiver is RoHS compliant.
Features
- Industry standard 1×9 footprint
- SC duplex connector
- Single power supply 3.3V
- Differential LVPECL data inputs and outputs
- Compatible with solder and aqueous wash processes
- Class 1 laser product complies with EN 60825-1
- Input/Output: DC/DC
- Up to 50km over single mode fiber
Applications
- L4.1
Specifications
Form Factor: 1×9
Data Rate: 622Mbps
Wavelength: 1310nm
LD Type: DFB
Media: SMF
Distance: 50km
Protocol: L4.1
Tx Power: -3~+2dBm
Rx Sens: <-28dBm
Temperature: 0°C to 70°C (Commercial), -40°C to 85°C (Industrial)
Voltage: 3.3V
Connector: SC
