DVI Fiber Optic Extender, Dual Link, 1x MPO, 500m
- Supports resolutions up to 2560 x 1600 (DVI Dual Link)
- Maximum extension distances up to 500m
- Extends signals over a single strand MPO-terminated optical fiber

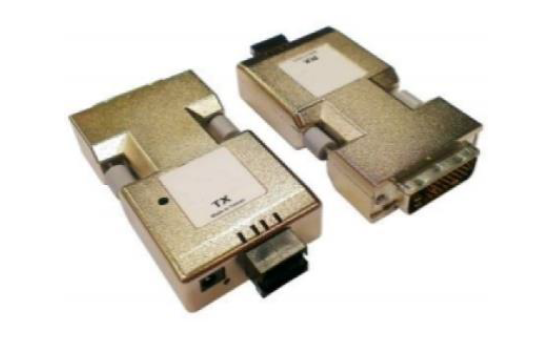

DVI-TXRX-1MPO-50x: DVI Dual Link Extender Set via Single MPO MM Fiber for 500m
Description
The DVI-TXRX-1MPO-50x DVI Extender provides long haul transmission of DVI over a single fiber. Engineered with high quality and uncompressed DVI single link video transmission, the extender can enable transmission up to 500 meters in one MPO multimode cable. Applicable for server room PC and client terminal connection, its self-EDID programming feature is also built-in to make the field installation easier and more flexible.
[PDF] DVI-TXRX-1MPO-50x DVI Dual Link Extender Set via Single MPO MM Fiber Product Data Sheet
Features
- Long distance image transmission
- High resolution and quality
- No RF interference by optical fiber cable
- Class 1 laser product compliant with EN 60825-1
- CE/FCC certifications for EMI/RFI
Features
- Remote monitor for traffic, industrial, military control
- LCD, Projector, Plasma display connection
- Large video wall system
- Multi-monitors for advertising
Specifications
Max Resolution: 2560 x 1600 (DVI Dual Link)
Signal Type: DVI
Connector: MPO
Operating Distance: 500m at MM fiber
Working Temperature: 0oC to 50oC
Documentation
DATA SHEET
[PDF] DVI-TXRX-1MPO-50x DVI Dual Link Extender Set via Single MPO MM Fiber Product Data Sheet
