Affordable Dot Laser Modules for Versatile Applications
Low Cost Dot Laser Modules are designed to offer a cost-effective solution for applications requiring precise laser dot projection. These modules provide reliable performance for alignment, marking, and measurement tasks across various industries. Featuring compact designs and easy integration, our low-cost dot laser modules are ideal for use in manufacturing, construction, and research environments where budget-friendly solutions are essential without compromising on quality.
Filters Sort results
Reset Apply
Part Number | Product Line | Wavelength | Output Power | Beam Profile | Beam Divergence | Operating Current | Operating Voltage | Modulation | Operating Temperature | Mechanical Dimensions | |
|---|---|---|---|---|---|---|---|---|---|---|---|

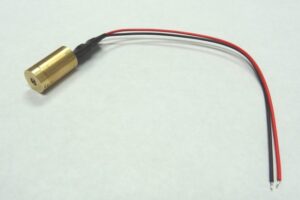

 | Laser Modules - Low Cost Laser Modules | 450nm | 0.5-0.99mW , 3-4.99mW | <1mrad | <300mA | 3-5VDC | -10°C to 50°C | Dia. 12mm x L. 44.5mm | |||

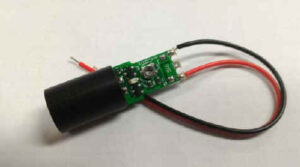

 | Laser Modules - Low Cost Laser Modules | 515nm | 0.5-0.99mW , 3-4.99mW | Circular | <1mrad | <300mA | 3-5VDC | -10°C to 50°C | Dia. 12mm x L. 35.5mm | ||
 | Laser Modules - Low Cost Laser Modules | 635nm / 650nm | From <1mW up to <3mW | 2mrad | <35mA | 3VDC | 0°C to 40°C | Dia. 4mm x L. 8.5mm | |||

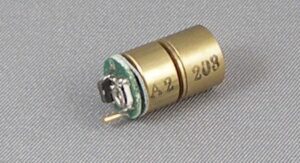

 | Laser Modules - Low Cost Laser Modules | 650nm | From <1mW up to <5mW | 1.1mrad | 26mA | 3VDC | 0°C to 40°C | Dia. 6.5mm x L. 14.5mm | |||
 | Laser Modules - Low Cost Laser Modules | 650nm | 0.7-0.99mW | Elliptical | <40mA | 3-4.5VDC | -10°C to 40°C | Dia. 9mm x L. 18.3mm | |||
 | Laser Modules - Low Cost Laser Modules | 635nm / 650nm / 670nm / 780nm / 808nm / 850nm / 904nm / 980nm | From <1mW to 6mW | Elliptical | <0.5mrad | 25-50mA | 3-6VDC | -10°C to 50°C ⋅ -10°C to 40°C | Dia. 6mm x L. 24.3mm | ||
 | Laser Modules - Low Cost Laser Modules | 635nm / 650nm / 780nm / 808nm / 850nm / 904nm / 980nm | 0.5-0.99mW , 2.1-3mW , 4-6mW | Elliptical | <0.5mrad | 25-40mA | 3-6VDC | -10°C to 50°C ⋅ -10°C to 40°C | Dia. 8mm x L. 12.5mm | ||
 | Laser Modules - Low Cost Laser Modules | 650nm | <1mW | Circular | <0.5mrad | 25mA | 4-6VDC | -10°C to 50°C | Dia. 8mm x L. 28mm | ||

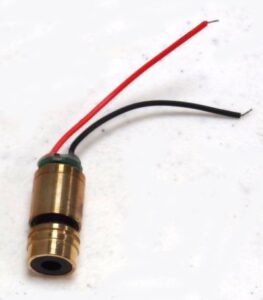

 | Laser Modules - Low Cost Laser Modules | 635nm / 650nm / 670nm / 780nm / 808nm / 850nm / 904nm / 980nm | From <1mW to 7mW | Elliptical | <0.5mrad | 25-50mA | 3-6VDC | -10°C to 50°C ⋅ -10°C to 40°C | Dia. 10.5mm x L. 20.5mm | ||
 | Laser Modules - Low Cost Laser Modules | 635nm / 650nm / 670nm / 780nm / 808nm / 850nm / 940nm / 980nm | 0.5-0.99mW , 2.1-3mW , 4-6mW | Elliptical | <0.5mrad | 25-40mA | 3-6VDC | -10°C to 50°C ⋅ -10°C to 40°C | Dia. 12mm x L. 29mm | ||

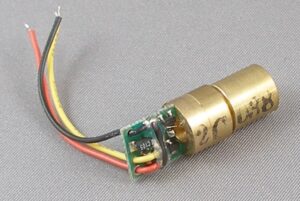

 | Laser Modules - Low Cost Laser Modules | 635nm / 650nm / 670nm / 780nm / 808nm / 850nm / 904nm / 980nm | 0.5-0.99mW , 1.2-2mW , 2.4-4mW | Circular | <0.5mrad | 25-40mA | 5VDC | TTL up to 100kHz | -10°C to 50°C ⋅ -10°C to 40°C | Dia. 10.5mm x L. 19.3mm | |

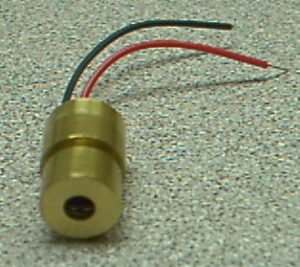

 | Laser Modules - Low Cost Laser Modules | 635nm / 650nm / 670nm / 780nm / 808nm / 850nm / 904nm / 980nm | 0.5-0.99mW , 2.1-3mW , 4.2-6mW | Elliptical | <0.5mrad | 25-50mA | 3-6VDC | -10°C to 50°C ⋅ -10°C to 40°C | Dia. 10.5mm x L. 15mm | ||
 | Laser Modules - Low Cost Laser Modules | 635nm / 650nm / 670nm / 780nm / 808nm / 850nm / 904nm / 980nm | 0.5-0.99mW , 1.2-2mW , 2.4-4mW | Circular | <0.5mrad | 25-50mA | 3-6VDC | -10°C to 50°C ⋅ -10°C to 40°C | Dia. 10.5mm x L. 19.3mm | ||
 | Laser Modules - Low Cost Laser Modules | 650nm | <1mW | Elliptical | <0.5mrad | 25mA | 3-9VDC | -10°C to 50°C | Dia. 8mm x L. 24.7mm | ||
 | Laser Modules - Low Cost Laser Modules | 635nm / 650nm / 670nm / 780nm / 808nm / 850nm / 904nm / 980nm | From <1mW to 7mW | Elliptical | <0.5mrad | 25-40mA | 5VDC | TTL up to 100kHz | -10°C to 50°C ⋅ -10°C to 40°C | Dia. 10.5mm x L. 20.5mm | |
 | Laser Modules - Low Cost Laser Modules | 635nm / 650nm / 670nm / 780nm / 808nm / 850nm / 904nm / 980nm | From <1mW to 6mW | Elliptical | <0.5mrad | 25-40mA | 5VDC | TTL up to 100kHz | -10°C to 50°C ⋅ -10°C to 40°C | Dia. 10.5mm x L. 15mm |
