Our Alignment Laser Modules provide precise positioning and calibration for industrial and scientific uses. Choose from precision adjustable modules with set screws or pre-aligned plug-and-play options.
Available in circular and elliptical beams, wavelengths from 520nm to 980nm, and compact housings like ⌀12mm and ⌀0.5in. Features include adjustable focus and TTL modulation for better control.
Reliable and easy to use, these modules are perfect for alignment, inspection, positioning, and measurement in manufacturing, automation, and labs.
   | The PLA515 Series features pre-aligned green laser diode modules at 515nm with a ⌀10.5mm housing. The output beam is factory-aligned to the module’s center-line with a tight tolerance of ±0.5°, requiring no user adjustment for quick and reliable deployment. Available Wavelengths 515nm Output Power <5mW Beam Alignment Type Pre-Aligned Mechanical Dimensions Dia. 10.5mm x L. 15.5mm |

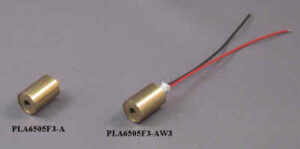

 | The PLA650 Series offers pre-aligned 650nm laser diode modules in a compact ⌀10.5mm housing. Featuring precise beam centering with a tight tolerance of ±0.0573° (±1.0cm at 10m), these modules require no user adjustment—ideal for reliable alignment applications. Available Wavelengths 650nm Output Power <5mW Beam Alignment Type Pre-Aligned Mechanical Dimensions Dia. 10.5mm x L. 15.5mm |

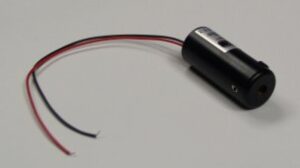

 | The LAC Series laser diode modules offer precision pointing with a circular beam across 635–980nm wavelengths. Featuring a robust ⌀15.9mm housing and 3 set screws, users can finely adjust the laser beam alignment for exact positioning in demanding applications. Available Wavelengths 635nm / 650nm / 670nm / 780nm / 808nm / 850nm / 904nm / 980nm Output Power From <1mW up to <5mW Beam Alignment Type Precision Adjustable Mechanical Dimensions Dia. 15.9mm x L. 47mm |
