Diffractive Optical Element DOE 10000-Dot Random Pattern – 59° x 46° at 850nm, PET 5×0.188 mm or PMMA 5×1 mm

Description

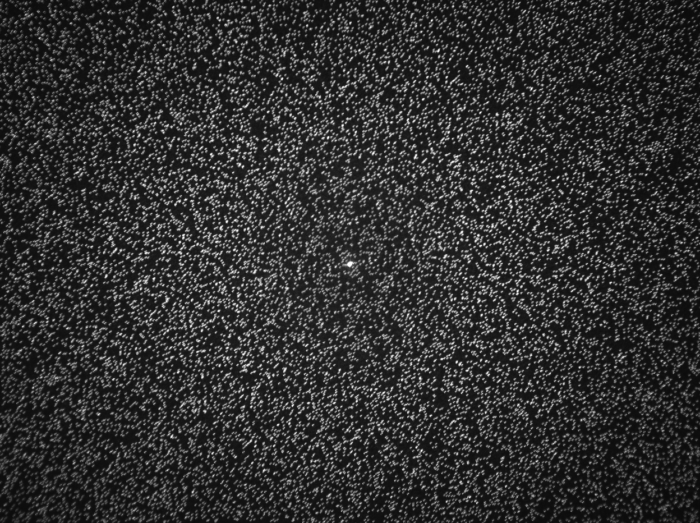

The DOE-RD10K850A Diffractive Optical Element (DOE) generates random dot pattern with 10,000 dots and design wavelength at 850nm with active area 4x4mm. Available in PET or PMMA substrate material, the DOE fits well into many standard laser modules or may be mounted outside of the module housing.

[PDF] DOE-RD10K850A-x: Diffractive Optical Element, 10000-Dot Random Pattern, 59° x 46° at 850nm Product Data Sheet

Features:

  • Random dots pattern
  • Number of dots: 10,000
  • Substrate material: PET/PMMA
  • DOE active area: 4x4mm
  • Design wavelength: 850nm
  • Minimum recommended beam diameter (FWHM): 2mm

Specifications

DOE Pattern: 10,000 Random Dots

Design Wavelength: 850nm

Field of View (FOV): 59°x46° (HxV)

Zero Order: ≦0.3%

Substrate Material: PET – Dia. 5mm x T. 0.188mm; PMMA – Dia. 5mm x T. 1mm

Documentation

DATA SHEET

[PDF] DOE-RD10K850A-x: Diffractive Optical Element, 10000-Dot Random Pattern, 59° x 46° at 850nm Product Data Sheet
