The VCx-850C2WA is an 850nm 2W CW VCSEL diode with oxide isolation and good thermal conduction, available in SMD 7060 or T-mount packages for 3D sensing, LiDAR, IR illumination, and medical applications.
VCx-850C2WA
Description
The VCx-850C2WA is a high-power 850nm CW VCSEL diode delivering up to 2000mW continuous-wave optical output for demanding sensing, illumination, and laser applications. Engineered with oxide isolation technology and strong thermal conduction, the device provides stable high-power performance and reliable operation across a wide range of environments.
Available in SMD 7060 or T-mount package options, the VCx-850C2WA supports easy integration into 3D sensing modules, LiDAR systems, IR illumination setups, proximity sensors, and medical imaging or treatment devices that require high-power near-infrared light sources.
VCx-850C2WA – 850nm 2000mW CW VCSEL Diode Data Sheet
Features
- 850nm VCSEL diode
- Output power: 2000mW (CW)
- Good thermal conduction
- Oxide isolation technology

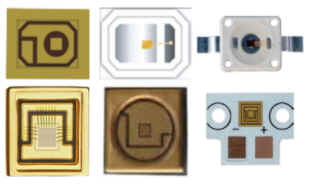

- Available in SMD 7060 or T-mount package options
Applications
- 3D sensing
- LiDAR (Light Detection and Ranging)
- Infrared (IR) illumination
- Proximity sensors
- Medical imaging and treatment systems
Additional information
| Status | Active |
|---|---|
| Wavelength | 850nm |
| Output Power | 2000mW |
| Operation Mode | CW |
| Emission Mode | Multimode |
| Beam Divergence | 20° |
| Package | 7060 SMD, T-Mount |
| Operating Current | 2.04A |
| Operating Voltage | 2.38V |
| Operating Temperature | -40°C to 85°C |
