Lasermate provides 850nm, multimode Vertical Cavity Surface Emitting Laser (VCSEL) chip array designed for use in 25Gbps data rate operation. The 25G VCSEL chip array features dual top contact, low threshold and low operating current.
VCCx-85B25G
Description

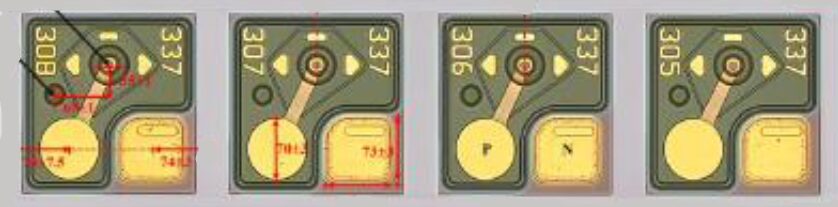

The VCCx-85B25G is an 850nm wavelength, multimode Vertical Cavity Surface Emitting Laser (VCSEL) array available with up to 12 channels designed for use in 25Gbps data rate operation. The VCCx-85B25G features dual top contact, low threshold and low operating current.
VCCx-85B25G: 25Gb/s 850nm Multimode Dual Top Contact VCSEL Array Data Sheet
Features
- 850nm multimode VCSEL chip
- High data rate capable of running 25Gbps
- P and N bonding pads on top surface
- Low threshold and operation current
- Available in 4, 8, and 12 channels
Applications
- High speed Data communications
- Gigabit ethernet
- Fiber channel
Additional information
| Status | Active |
|---|---|
| LD Type | VCSEL |
| Package | Bare Die |
| Number of Channels | 12, 4, 8 |
| Data Rate | 25Gbps |
| Wavelength | 850nm |
| Output Power | 2.2mW |
| Emission Mode | Multimode |
| Emitters | Single |
| Chip Dimensions | 235x235x150 um |
| Operating Temperature | -40°C to 85°C |
Documentation
Data Sheet
[PDF] VCCx-85B25G: 25Gb/s 850nm Multimode Dual Top Contact VCSEL Array Data Sheet
