The VCCAx-85A56G is a 56Gb/s PAM4 (28GBd) 850nm multimode VCSEL array with a dual top contact design, delivering high-performance optical data transmission for advanced communication systems.
VCCAx-85A56G
Description

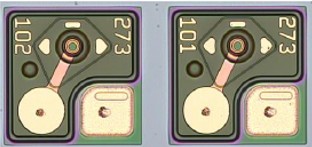

The Lasermate VCCAx-85A56G is an 850nm wavelength, Vertical Cavity Surface Emitting Laser (VCSEL) array available with up to 12 channels. The VCSEL is designed for use in 56Gbps PAM4 application.
VCCAx-85A56G: 56Gb/s PAM4 (28GBd) 850nm Multimode Dual Top Contact VCSEL Array
Features
- 850nm multimode emission
- Linear array bar with 250um pitch
- High data rate up to 56 Gbps PAM4
- P and N bonding pads on top surface
- Low threshold and operation current
Applications
- High speed Data communications
- Gigabit ethernet
- Fiber channel
Additional information
| Status | Active |
|---|---|
| LD Type | VCSEL |
| Package | Bare Die |
| Number of Channels | 12, 4, 8 |
| Data Rate | 56Gb/s |
| Wavelength | 850nm |
| Output Power | 3.8mW |
| Emission Mode | Multimode |
| Emitters | Single |
| Chip Dimensions | 235x235x150 um |
| Operating Temperature | -10°C to 85°C |
Documentation
Data Sheet
[PDF] VCCAx-85A56G: 56Gb/s PAM4 (28GBd) 850nm Multimode Dual Top Contact VCSEL Array Data Sheet
