The VCCA4-85B4G is an 850nm oxide-confined 1×4 VCSEL chip array designed for 4.25Gbps multimode optical transmission. It provides efficient optical performance and is suitable for compact, short-reach data communication modules.
VCCA4-85B4G
Description

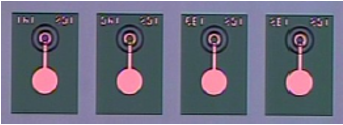

The VCCA4-85B4G is a 4.25Gbps oxide-confined VCSEL (Vertical Cavity Surface Emitting Laser) chip array designed for 850nm multimode operation. This 1×4 VCSEL array offers high slope efficiency, low threshold current, and high optical output with low bias requirements. Its compact footprint and performance characteristics make it ideal for short-reach, non-hermetic optical data communication.
VCCA4-85B4G: 4.25Gbps 850nm Oxide-Confined VCSEL Array
Features
- 850nm oxide-confined VCSEL array
- Supports data rates exceeding 4.25Gbps
- High slope efficiency
- High light output power with low bias
- Suitable for non-hermetic package applications
Applications
- High speed Data communications
- Gigabit ethernet
- Fiber channel
Additional information
| Status | Active |
|---|---|
| LD Type | VCSEL |
| Package | Bare Die |
| Number of Channels | 4 |
| Data Rate | 4.25Gbps |
| Wavelength | 850nm |
| Output Power | 1.5mW |
| Emission Mode | Multimode |
| Emitters | Single |
| Chip Dimensions | 970x320x200 um |
| Operating Temperature | -20°C to 85°C |
