The VCC-85B25G is an 850nm multimode VCSEL die designed for optical data transmission up to 25Gb/s. Its dual top contact configuration enables efficient integration into high-speed communication modules.
VCC-85B25G
Description
The VCC-85B25G is a high-speed 850nm multimode VCSEL die designed to support optical transmission up to 25Gb/s. Featuring a dual top contact architecture, the device enables simplified electrical interfacing and flexible integration into compact optical modules and customized packaging solutions.
Built using advanced VCSEL fabrication technology, the VCC-85B25G provides stable optical output, efficient power consumption, and reliable high-frequency modulation performance. Its compact form factor makes it suitable for next-generation short-reach optical interconnects and high-density photonic communication systems.
VCC-85B25G: 25Gb/s 850nm Multimode Dual Top Contact VCSEL Die
Features
- 850nm multimode emission
- High data rate up to 25Gbps

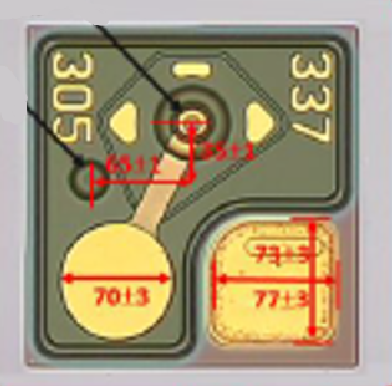

- P and N bonding pads on top surface
- Low threshold and operation current
Applications
- High speed Data communications
- Gigabit ethernet
- Fiber channel
Additional information
| Status | Active |
|---|---|
| LD Type | VCSEL |
| Package | Bare Die |
| Number of Channels | 1 |
| Data Rate | 25Gbps |
| Wavelength | 850nm |
| Output Power | 2.2mW |
| Emission Mode | Multimode |
| Emitters | Single |
| Chip Dimensions | 235x235x150 um |
| Operating Temperature | -40°C to 85°C |
Documentation
Data Sheet
[PDF] VCC-85B25G: 25Gb/s 850nm Multimode Dual Top Contact VCSEL Die Data Sheet
