The VCC-113A2800H is a 1135nm high-power multi-emitter oxide-confined VCSEL chip delivering 2800mW optical output power. Designed for demanding sensing applications, it is ideal for 3D sensing, direct time-of-flight (dToF), gesture recognition, optical encoders, and medical devices.
VCC-113A2800H
Description
The VCC-113A2800H is a 1135nm high-power multi-emitter oxide-confined vertical-cavity surface-emitting laser (VCSEL) chip engineered for advanced sensing and illumination applications. It delivers 2800mW optical output power under 10μs pulse width, 1% duty cycle at 5A, providing high peak optical power for demanding infrared sensing systems. The compact 835 × 835 × 150μm chip utilizes an oxide-confined VCSEL architecture to provide excellent efficiency, beam uniformity, and long-term reliability for OEM integration.
The VCC-113A2800H is ideally suited for 3D sensing, direct time-of-flight (dToF), gesture recognition, motion sensing, optical encoders, healthcare and medical devices, and consumer electronics. Its high optical output and compact form factor make it an excellent solution for next-generation depth sensing, ranging, and infrared illumination applications.
Features
- 1135nm multi-emitter oxide-confined VCSEL chip
- 2800mW optical output power (@ 10μs pulse width, 1% duty cycle, 5A)

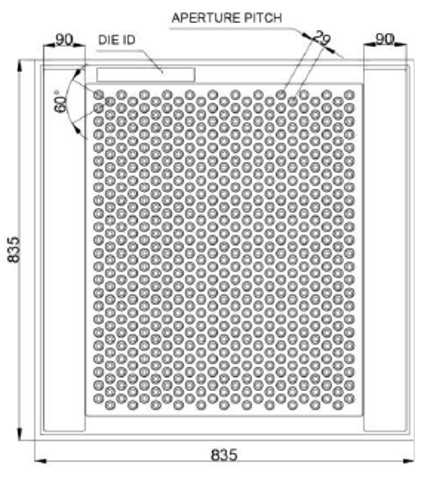

- Chip dimensions: 835 × 835 × 150μm
- High peak optical power for pulsed operation
- Compact, high-efficiency VCSEL architecture
- High reliability for OEM integration
Applications
- Motion sensing and gesture recognition
- Optical encoders
- 3D sensing
- Healthcare and medical devices
- Mobile and consumer electronics
- Direct time-of-flight (dToF)
Additional information
| Status | Active |
|---|---|
| LD Type | VCSEL |
| Package | Bare Die |
| Number of Channels | 1 |
| Wavelength | 1135nm |
| Output Power | 2800mW |
| Emission Mode | Multimode |
| Emitters | Multiple |
| Chip Dimensions | 835x835x150 um |
