The VCC-113A20H is a 1135nm multi-emitter oxide-confined VCSEL chip delivering 20mW optical output power. Its compact footprint and reliable performance make it well suited for 3D sensing, gesture recognition, optical encoders, and medical and consumer applications.
VCC-113A20H
Description
The VCC-113A20H is a 1135nm multi-emitter oxide-confined vertical-cavity surface-emitting laser (VCSEL) chip designed for high-performance sensing and illumination applications. It delivers 20mW optical output power under 20μs pulse width with a 50% duty cycle, providing stable infrared illumination in a compact 235 × 235 × 150μm chip package. Its oxide-confined VCSEL architecture offers efficient operation, excellent beam quality, and high reliability for OEM integration.
The VCC-113A20H is ideally suited for 3D sensing, gesture recognition, optical encoders, motion sensing, healthcare devices, and consumer electronics. Its compact size and dependable optical performance make it an excellent choice for next-generation sensing systems requiring miniature infrared light sources.
Features
- 1135nm multi-emitter oxide-confined VCSEL chip
- 20mW optical output power (@ 20μs pulse width, 50% duty cycle)

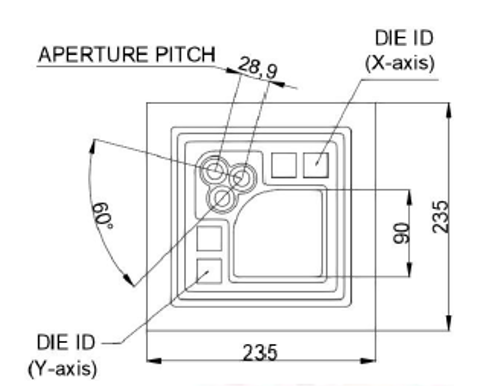

- Chip dimensions: 235 × 235 × 150μm
- Compact, high-efficiency VCSEL architecture
- High reliability for OEM integration
Applications
- Motion sensing and gesture recognition
- Optical encoders
- 3D sensing
- Healthcare and medical devices
- Mobile and consumer electronics
Additional information
| Status | Active |
|---|---|
| LD Type | VCSEL |
| Package | Bare Die |
| Number of Channels | 1 |
| Wavelength | 1135nm |
| Output Power | 20mW |
| Emission Mode | Multimode |
| Emitters | Multiple |
| Chip Dimensions | 235x235x150 um |
