Ultra-short pulse ultraviolet DPSS laser systems for microelectronics, UV processing, precision material processing, medical applications, and scientific research.

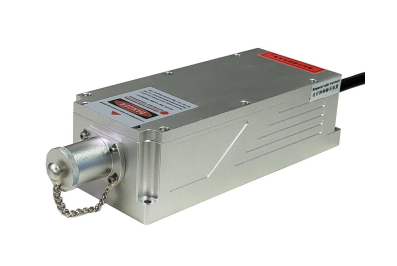

QSLFN Series
Description
The QSLFN Series is a family of ultraviolet diode-pumped solid-state (DPSS) passively Q-switched lasers delivering average output powers up to 15mW. Available at 236nm and 266nm wavelengths, these compact laser systems provide pulse energies up to 8µJ with ultra-short pulse durations as short as approximately 0.6ns for precision ultraviolet applications. Designed for long operating lifetime, reliable performance, and FDA-compliant operation, the QSLFN Series is well suited for scientific research, microelectronics, UV processing, and medical applications.
Features
- Available ultraviolet wavelengths: 236nm and 266nm
- Passively Q-switched operation
- Average output power up to 15mW
- Pulse energy up to 8µJ
- Ultra-short pulse duration (~0.6ns)
- High peak power
- Ultra-compact integrated design
- Long operating lifetime
- FDA-compliant laser system with driver
Applications
- Scientific research
- Microelectronics processing
- UV curing
- CD engraving and marking
- Laser medical treatment
- Precision UV material processing
Additional information
| Laser Technology | DPSS |
|---|---|
| Wavelength | 236nm, 266nm |
| Output Power | Up to 15mW |
| Pulse Energy | Up to 8uJ |
