High-frequency nanosecond EOM Q-switched DPSS lasers for LiDAR, LIBS, Raman spectroscopy, time-resolved measurements, high-speed processing, and precision analytical systems.

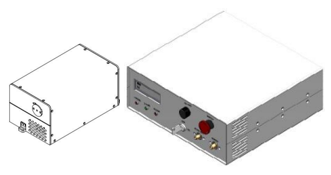

QEOR Series
Description
The QEOR Series High Frequency Electro-Optic Q-Switched DPSS Pulsed Lasers deliver high-speed nanosecond pulse output with repetition rates up to 100kHz, high peak power, excellent beam quality, and outstanding pulse-to-pulse stability. Available at 532nm and 1064nm, these compact, air-cooled laser systems provide low timing jitter, and reliable performance for high-throughput scientific, analytical, and precision industrial applications.
Features
- Available wavelengths: 532nm and 1064nm
- High repetition rates up to 100kHz
- Ultra-short nanosecond pulse width
- Electro-optic Q-switched operation
- High peak power
- Excellent beam quality
- Low timing jitter
- High pulse-to-pulse stability
- Compact air-cooled design
- Long operational lifetime
Applications
- High-speed laser ranging (LiDAR)
- LIBS
- Raman spectroscopy
- ICP-MS
- High-speed laser processing
- Time-resolved spectroscopy
- Nonlinear optics
- Scientific research
- Precision analytical instrumentation
Additional information
| Laser Technology | DPSS |
|---|---|
| Wavelength | 532nm, 1064nm |
| Pulse Energy | Up to 300uJ |
| Pulse Width | 1.3-1.8 ns |
| Repetition Rate | 1 Hz-100 kHz |
| Output Power | Up to 1500mW |
Documentation
Data Sheet
[PDF] QEOR Series High Frequency Electro-Optic Q-Switched DPSS Pulsed Lasers Datasheet
