High-energy nanosecond EOM Q-switched DPSS lasers for laser ranging, LIBS, Raman spectroscopy, pump-probe experiments, nonlinear optics, and precision material processing.
QEOL Series
Description

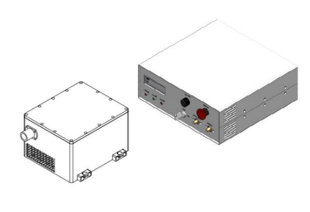

The QEOL Series High-Energy Electro-Optic Q-Switched DPSS Pulsed Lasers provide high pulse energy, excellent beam quality, and stable nanosecond pulse performance across wavelengths from 501nm to 1100nm. Designed for applications requiring increased pulse energy and reliable operation, the series offers adjustable repetition rates up to 1kHz, making it well suited for demanding scientific, analytical, and industrial systems.
Features
- Available wavelengths: 355nm, 532nm, 1064nm
- High pulse energy output up to 100uJ
- Electro-optic Q-switched operation
- Nanosecond pulse width ~5ns
- Adjustable repetition rates 10Hz-1kHz
- Low timing jitter
- High pulse-to-pulse stability
- Air-cooled operation
- Reliable long-term performance
Applications
- Laser ranging
- LIBS
- Raman spectroscopy
- Pump-probe experiments
- Nonlinear optics
- Scientific research
- Analytical instrumentation
- Precision material processing
Additional information
| Laser Technology | DPSS |
|---|---|
| Wavelength | 355nm, 532nm, 1064nm |
| Pulse Energy | Up to 100uJ |
| Pulse Width | 5 ns |
| Repetition Rate | 10 Hz-1 kHz |
| Output Power | Up to 100mW |
Documentation
Data Sheet
[PDF] QEOL Series High-Energy Electro-Optic Q-Switched DPSS Pulsed Lasers Datasheet
