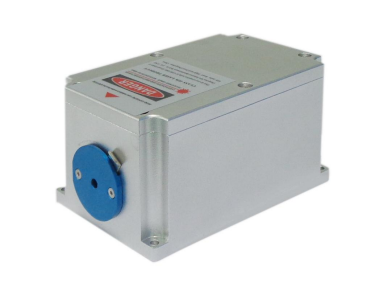

NSDL Series
Description
The NSDL Series Nanosecond Pulsed Diode Lasers provide tunable pulse widths from 10ns to 10ms with external triggering. Available from 375nm to 1550nm, the series offers high-frequency modulation, good beam quality, stable output, and a compact design for easy equipment integration.
Features
- Wavelengths from 375nm to 1550nm
- Pulse width tunable from 10ns to 10ms
- External trigger operation
- User trigger frequency up to 80MHz (model dependent)
- Software-adjustable output power
- High-frequency modulation
- Good beam profile
- Integrated electronics
- Compact design
- Easy system integration
Applications
- Microelectronics
- Material processing
- Solar energy
- Equipment integration
- Optical and scientific instrumentation
Additional information
| Laser Technology | Diode |
|---|---|
| Wavelength | 375-1550 nm |
| Pulse Width | 10 ns-10 ms |
| Repetition Rate | Up to 80MHz |
| Output Power | Up to 300mW |
