The MS Series multi-wavelength single-mode fiber coupled laser systems combine two to four laser wavelengths into a single-mode fiber output. Featuring customizable wavelength combinations from 320nm to 1064nm, excellent beam quality, and stable CW operation, these lasers are designed for precision scientific and research applications.

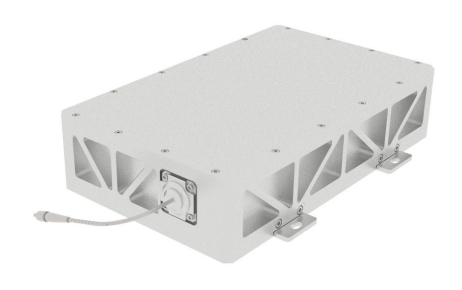

MS Series
Description
The MS Series Multi-Wavelength Single-Mode Fiber Coupled Laser System combines 2 to 4 laser wavelengths into a single single-mode (SM) fiber output, providing a compact, stable, and high-quality laser source for precision scientific and research applications. Available with customizable wavelength combinations from 320nm to 1064nm, the system delivers excellent beam quality, high stability, and flexible integration for laboratory and OEM instrumentation.
Features
- Combines 2 to 4 wavelengths into a single-mode fiber output
- Customizable wavelength combinations from 320nm to 1064nm
- Single-mode fiber output with FC connector
- Continuous-wave (CW) operation
- Optional TTL and analog modulation
- Excellent power stability
- Separate laser head and driver for easy integration
- Compact, air-cooled design
- Custom wavelength combinations, output powers, and fiber lengths available
Applications
- Fluorescence microscopy
- Confocal microscopy
- Raman spectroscopy
- Optical instrumentation
- Life science research
- Biomedical imaging
- Precision spectroscopy
- Scientific research
- OEM integration
Additional information
| Number of Wavelengths | 2-4 |
|---|---|
| Wavelength | 375-1550 nm |
| Output Type | Fiber Coupled |
