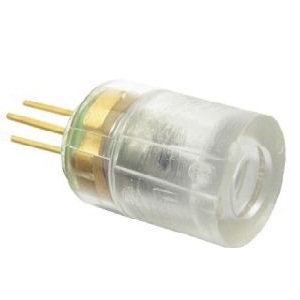

Miniature 650nm dot laser diode module with 6.5mm plastic housing, ideal for compact applications requiring precise visible red laser output.
PPA Series
Description
The Lasermate PPA series laser diode module is designed for OEM applications with lowest cost, plastic housing, and miniature size.
PPA Series – Miniature Dot Laser Diode Modules, 650nm, ⌀6.5mm Plastic Housing
Features
- Lowest cost 650nm laser diode module
- Dimensions: Dia. 6.5mm x L 14.5mm
- Automatic Power Control (APC) IC inside
- High quality plastic collimating lens
- Low current consumption of APC circuit
- Plastic housing
- Good laser beam profile
Applications
- Pointing
- Leveling
- Sensing
Additional information
| Wavelength | 650nm |
|---|---|
| Output Power | From <1mW up to <5mW |
| Beam Profile | Dot |
| Beam Size | <10 mm @ 5m |
| Modulation | CW |
| Beam Divergence | 1.1mrad |
| Operating Current | 26mA |
| Operating Voltage | 3VDC |
| Operating Temperature | 0°C to 40°C |
| Mechanical Dimensions | Dia. 6.5mm x L. 14.5mm |
