- 635nm, 650nm, 670nm, 780nm, 808nm, 850nm, 904nm, 980nm wavelength options
- Good performance and low cost
- Miniature design with 6mm diameter housing
- Adjustable focus option
PMS Series
Description

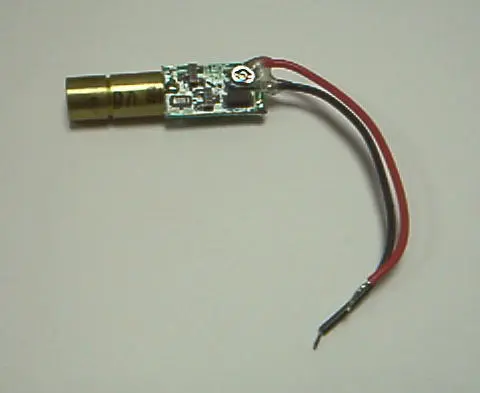

The Lasermate PMS series laser diode module is designed for OEM applications with low cost, miniature size, and beam focusing requirements. Additional heat sink may be needed for the laser module under continuously operating for a long period of time. Designed for OEM, the laser is ideal for a wide range of low power laser applications, such as general sighting, leveling, and positioning.
Features
- Wide range of wavelengths from 635nm to 980nm (including 650nm, 670nm, 780nm, 808nm, 850nm, 904nm)
- Different output power levels for different wavelengths
- Good performance and low cost
- Miniature design: Dia. 6mm x L. 12.6mm; PCB size W. 7.5mm x L.11.7mm
- Adjustable or fixed focus
- Elliptical beam profile
- Singlet plastic collimating lens
- Automatic Power Control (APC) circuit
Applications
- Pointing
- Leveling
- Sensing
Additional information
| Wavelength-typ | 635nm, 650nm, 670nm, 780nm, 808nm, 850nm, 904nm, 980nm |
|---|---|
| Output Power-typ | From <1mW to 6mW |
| Beam Profile | Elliptical |
| Beam Spot | 4×7 mm |
| Beam Divergence | <0.5mrad |
| Operating Current | 25-50mA |
| Operating Voltage | 3-6VDC |
| Focus | Adjustable focus, Fixed preset focus |
| Operating Temperature | -10°C to 40°C, -10°C to 50°C |
| Mechanical Dimensions | Dia. 6mm x L. 24.3mm |
