The CS13F-24A-4S-xC-Cx is a 1×9 optical transceiver for 1000Base-LX Gigabit Ethernet, operating at 1310nm over single-mode fiber up to 10km. It features an SC connector and is RoHS compliant.
CS13F-24A-4S-xC-Cx
Description

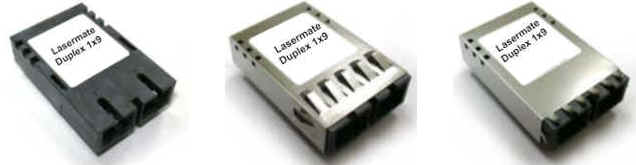

The CS13F-24A-4S-xC-Cx duplex 1×9 SC optical transceivers are high performance, cost effective optical transceiver modules for serial optical data communications application specified for a data rate of 1.25Gb/s. The 1×9 SC transceiver module provides 10km transmission distance over single mode fiber at nominal wavelength of 1310nm. The optical transceiver is RoHS compliant.
Features
- Compliant with IEEE 802.3z Gigabit Ethernet standard
- Compliant with Fiber Channel standard
- Industry standard 1×9 footprint
- SC duplex connector
- Single power supply 3.3V/5V
- Differential LVPECL/PECL inputs and outputs
- Compatible with solder and aqueous wash processes
- Class 1 laser product compliant with EN 60825-1
- Up to 10km over single mode fiber
Applications
- 1000Base-LX
Additional information
| Form Factor | 1×9 |
|---|---|
| Data Rate | 1.0625G/1.25G |
| Nominal Wavelength | 1310nm |
| Reach | 10km |
| Fiber Type | SMF |
| Connector | SC |
| Temperature Range | 0°C to 70°C |
| Protocol | 1000Base-LX |
