The CM85V-24A-4S-xC-Cx is a 1000Base-SX 1×9 optical transceiver operating at 850nm, designed for multimode fiber links up to 550 meters. It features an SC connector and is RoHS compliant, offering a cost-effective Gigabit Ethernet solution.
CM85V-24A-4S-xC-Cx
Description

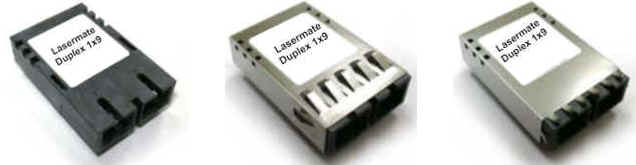

The CM85V-24A-4S-xC-Cx duplex 1×9 SC optical transceivers are high performance, cost effective optical transceiver modules for serial optical data communications application specified for a data rate of 1.25Gb/s. The 1×9 SC transceiver module provides 550m transmission distance over multi-mode fiber at nominal wavelength of 850nm. The optical transceiver is RoHS compliant.
Features
- Compliant with IEEE 802.3z Gigabit Ethernet standard
- Compliant with Fiber Channel standard
- Industry standard 1×9 footprint
- SC duplex connector
- Single power supply 3.3V/5V
- Differential LVPECL/PECL inputs and outputs
- Compatible with solder and aqueous wash processes
- Class 1 laser product compliant with EN 60825-1
- Up to 550m over multimode fiber
Applications
- 1000Base-SX
Additional information
| Form Factor | 1×9 |
|---|---|
| Data Rate | 1.0625G/1.25G |
| Nominal Wavelength | 850nm |
| Reach | 550m |
| Fiber Type | MMF |
| Connector | SC |
| Temperature Range | 0°C to 70°C |
| Protocol | 1000Base-SX |
Documentation
Data Sheet
[PDF] CM85V-24A-4S-xC-Cx 1.25Gbps 850nm 550m Multimode 1×9 SC Transceiver Product Specifications
